Heavy Industrial High Bay & Low Bay Lighting
The Albeo™ ABR1 Series is an IP66 rated fixture for demanding industrial environments with high ambient temperatures and wet applications. Utilizing a sealed form factor, the ABR1 Series offers a rugged design with exceptional performance and high reliability.
Features
- Up to 65ºC maximum ambient temperatures
- IP66 rated sensors
- IP66 rated fixture

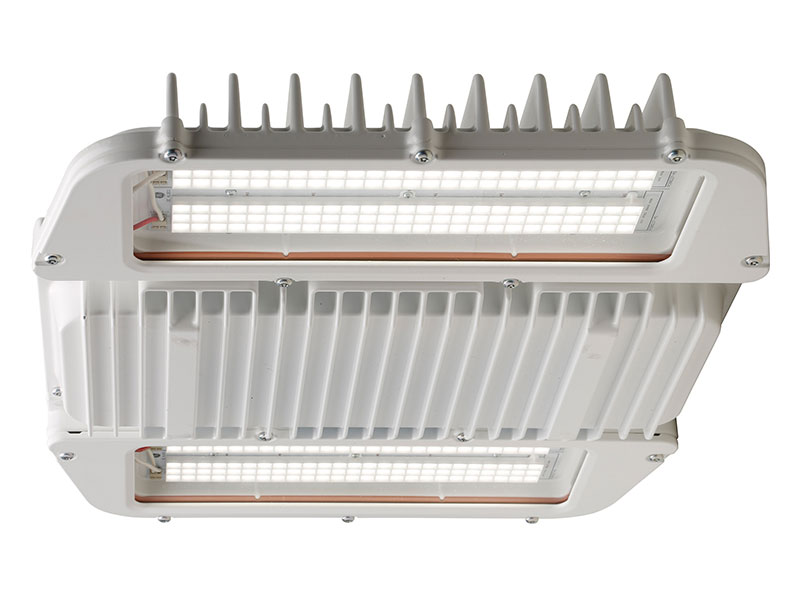

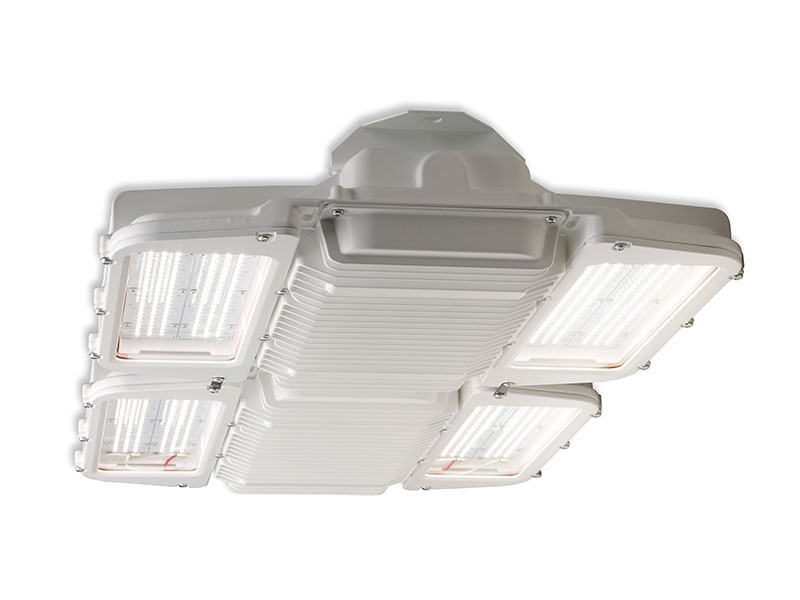

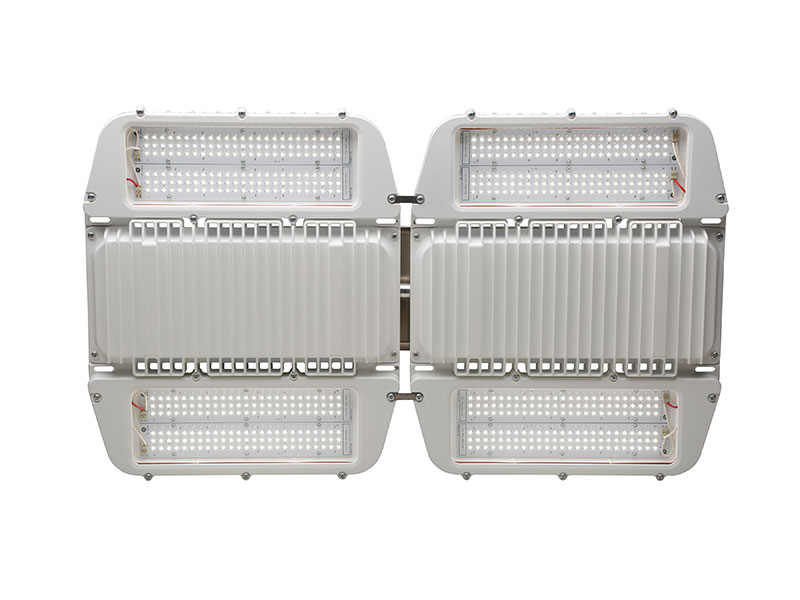

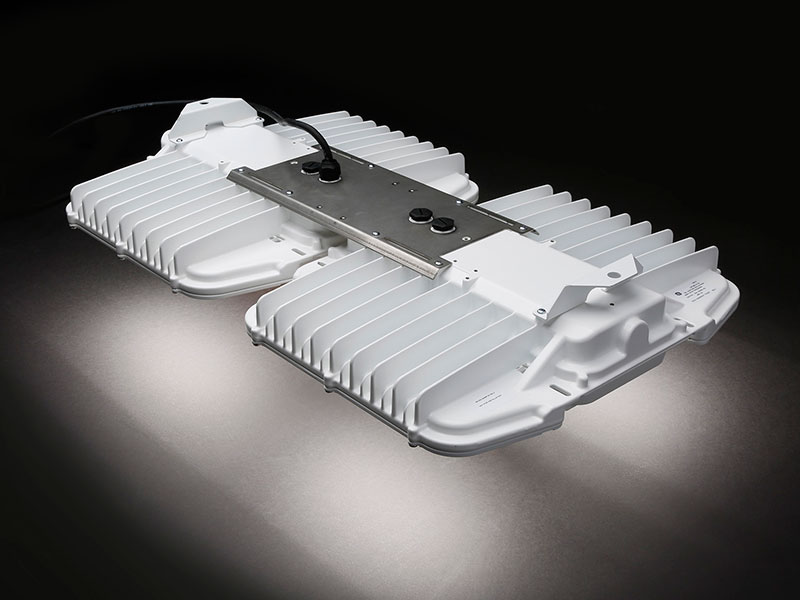

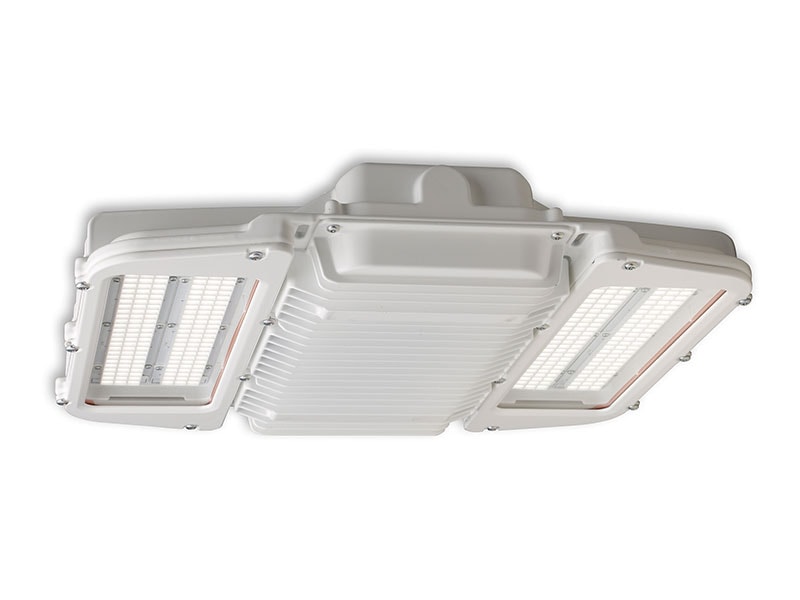

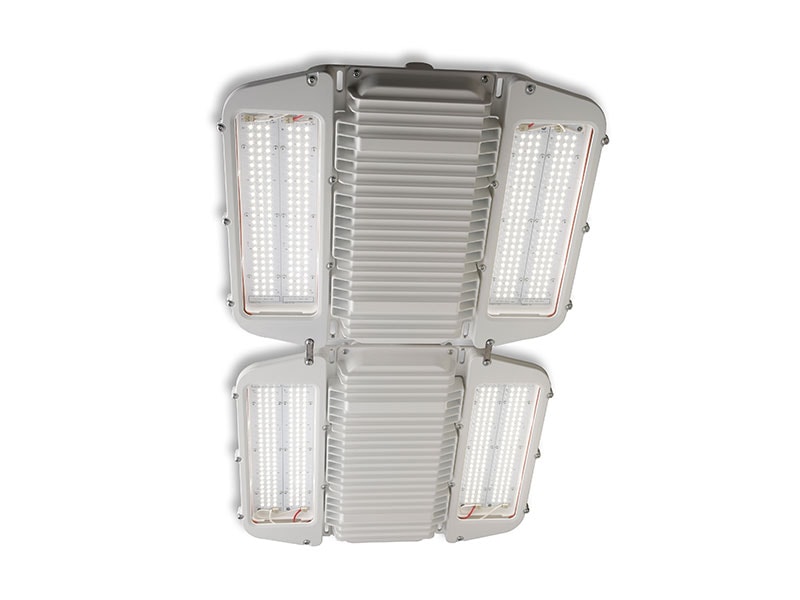

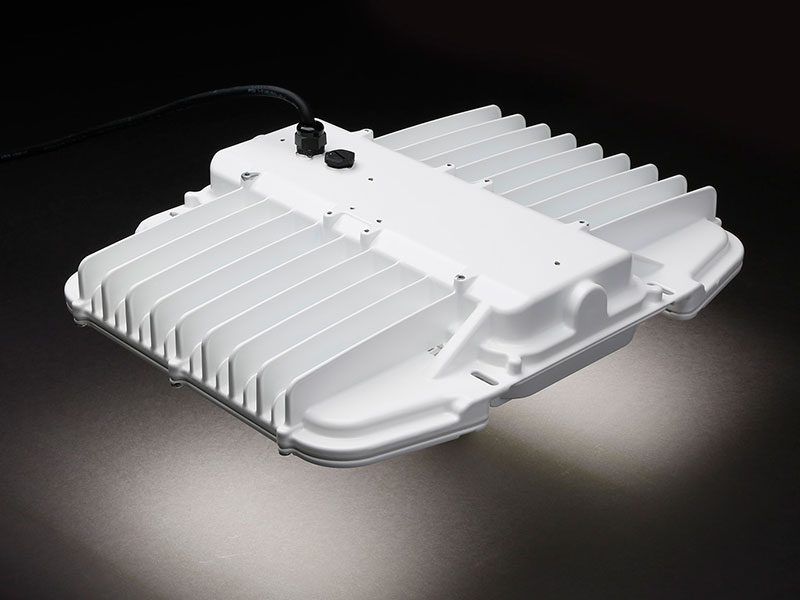

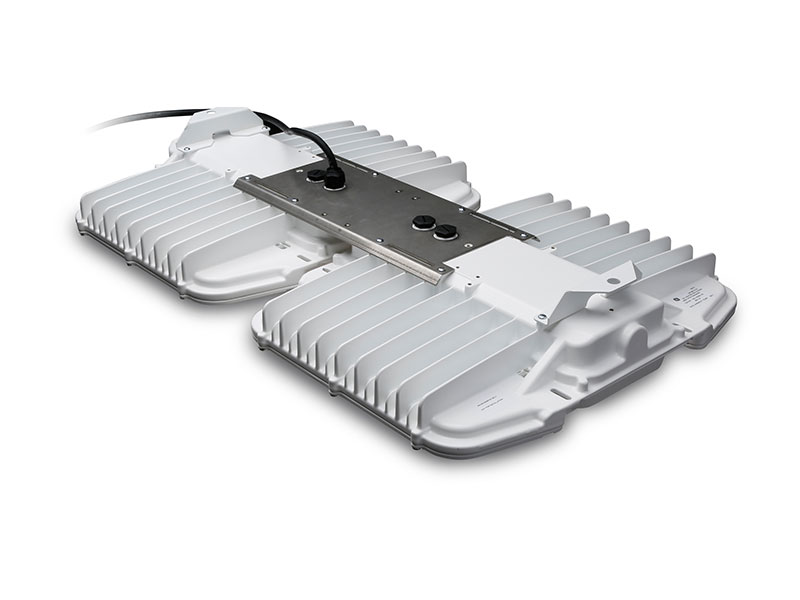

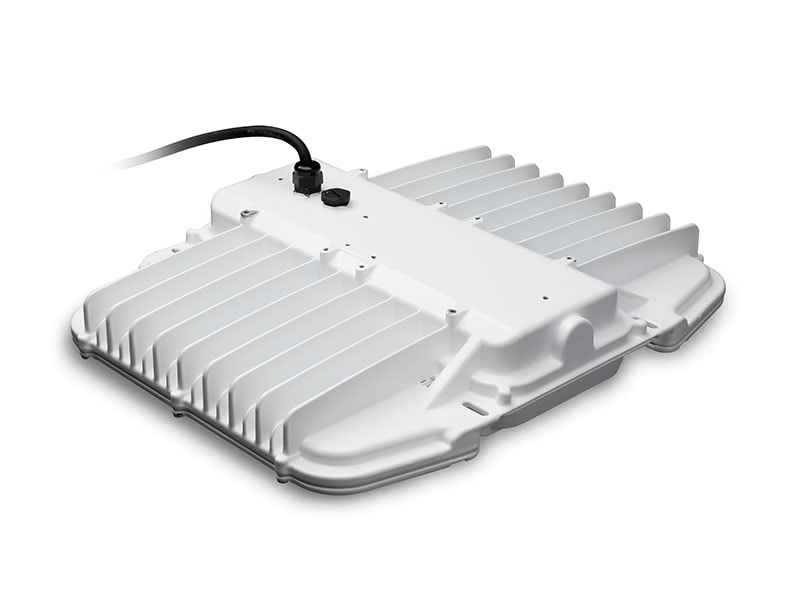

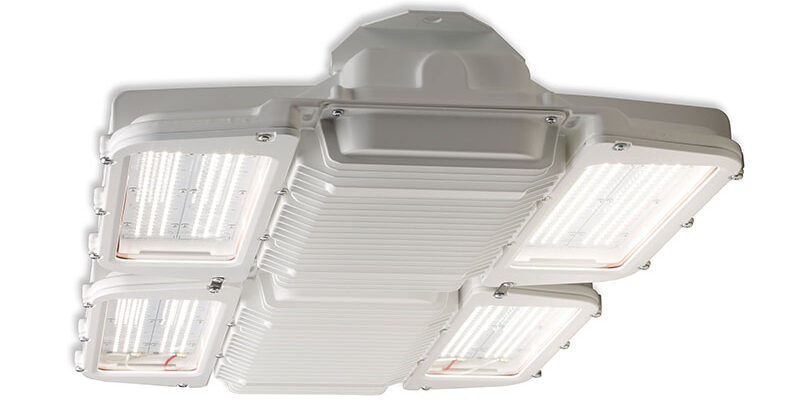

- Modular design: single and double fixture options
- Lumen output: 9,000-46,000 lm
- Optics: 55°, 90º, 120°
- Cable/chain, rod, or pendant mount
- 4000K or 5000K CCT
- 70 CRI
- Daylight and motion controls
- 0-10V dimming
- Lifetime: L70 at 100,000 hours
- 5-year limited system warranty standard
Certifications
- DLC qualified.
- UL 1598 Suitable for Wet Locations
- UL 8750 LED Equipment in Lighting Products
- RoHS
- UL 1598A Inside Drip Proof-Type
- 3,000 hours of ASTM B117 Salt Spray
- NEMA 4X Enclosure Type
Applications
- Heavy industrial and wet applications
- Corrosive Environments
- High and low bay lighting
- Racked aisles or open floor plan
- Warehouse, cold storage, industrial, gymnasiums, sports arena, retail, high-ceiling spaces
Spec Sheets-pdf-Spec Sheet — ABR1 Series Industrial Albeo LED | ALB018 Data Sheets-pdf-Data Sheet — ABR1 Series Industrial Albeo LED | ALB017
| ABR1x1H471xxxxxxx | High Output – 4000K, 70+ CRI – 120°, Wide | |
| High Output – 4000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| High Output – 4000K, 70+ CRI – 90°, Area Reflector | ||
| High Output – 5000K, 70+ CRI – 120°, Wide | ||
| High Output – 5000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| High Output – 5000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| Standard – 4000K, 70+ CRI – 120°, Wide | ||
| Standard – 4000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| Standard – 4000K, 70+ CRI – 90°, Area Reflector | ||
| High Output – 4000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| High Output – 4000K, 70+ CRI – 120°, Wide | ||
| High Output – 4000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| Standard – 5000K, 70+ CRI – 55° x 90°, Aisle Reflector | ||
| Standard – 5000K, 70+ CRI – 120°, Wide | ||
| Standard – 5000K, 70+ CRI – 90°, Area Reflector | ||
| Standard – 5000K, 70+ CRI – 55° x 90°, Aisle Reflector |
