Product ID: EALP

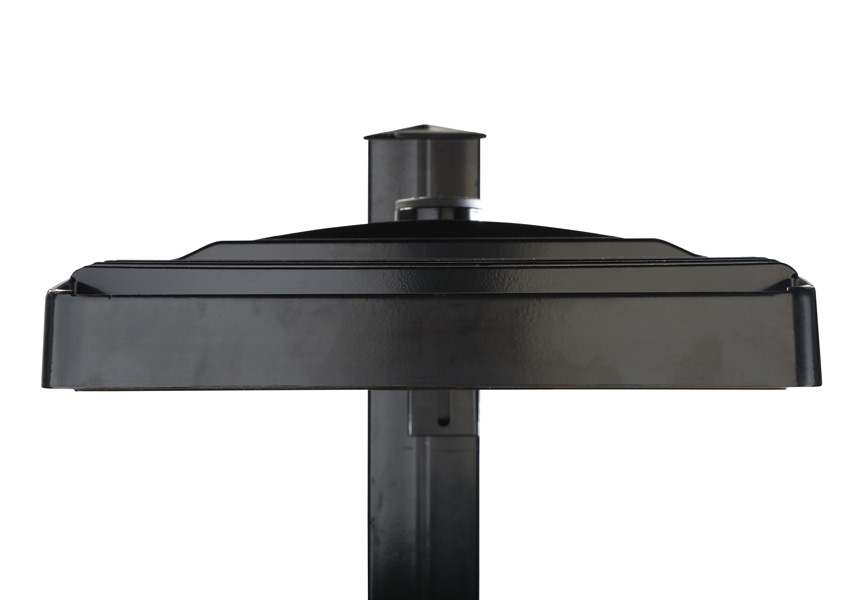

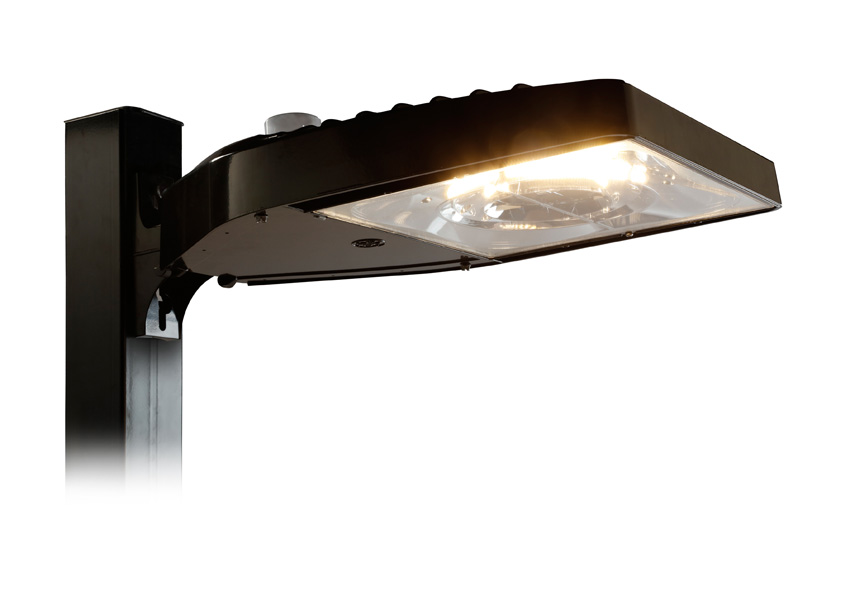

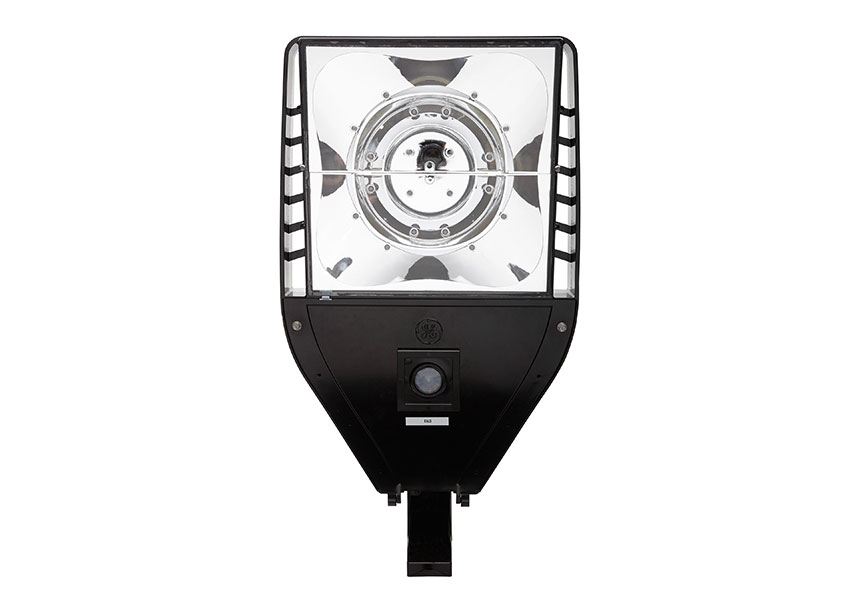

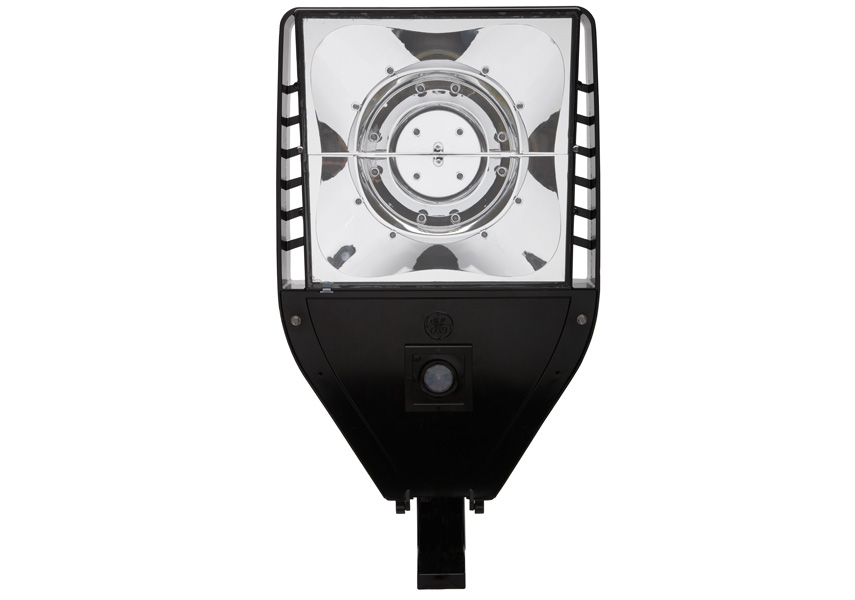

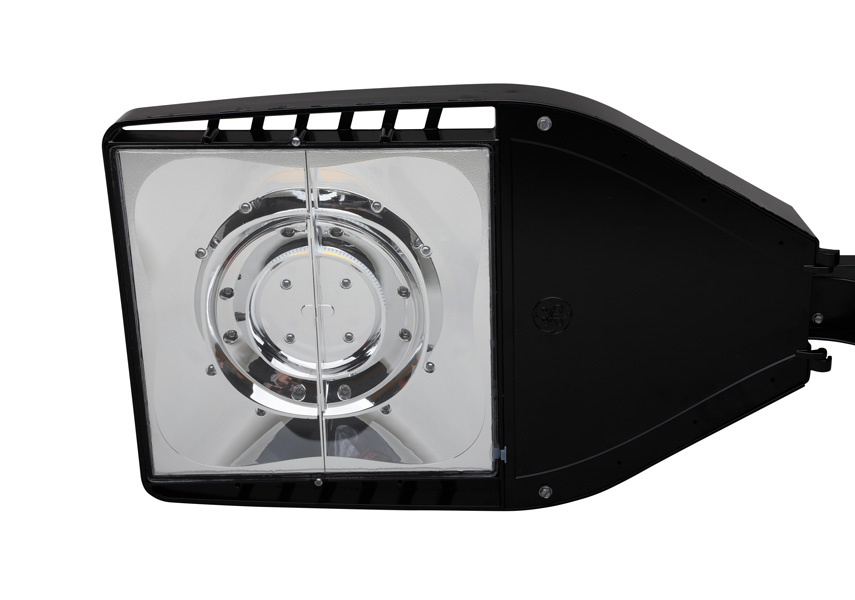

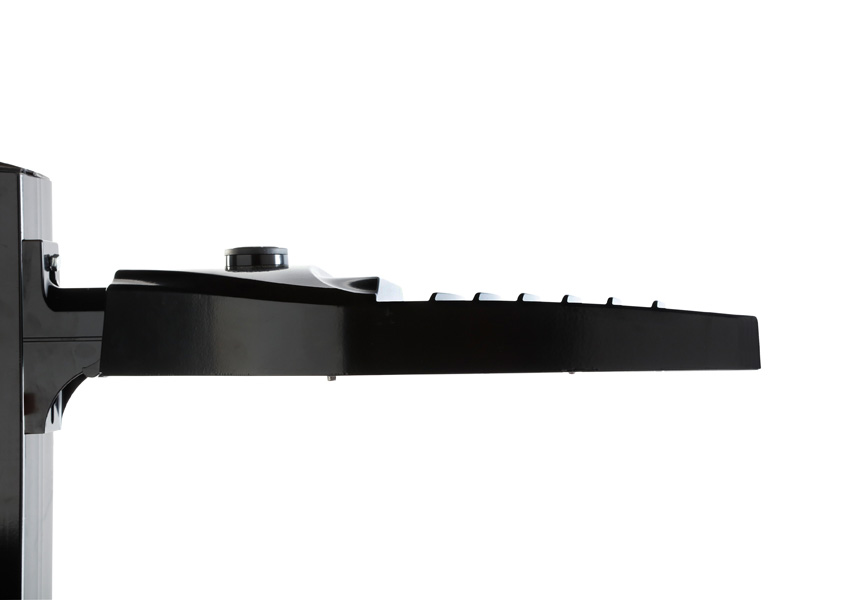

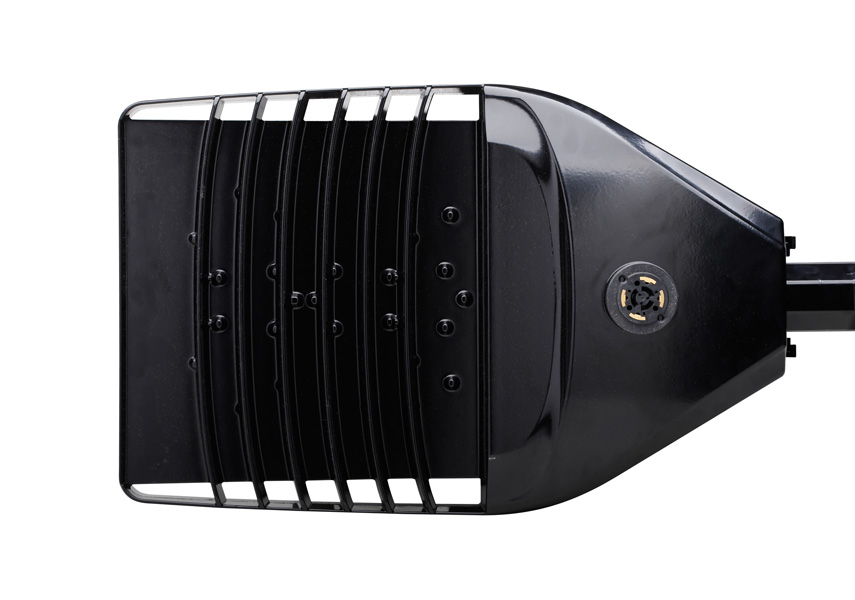

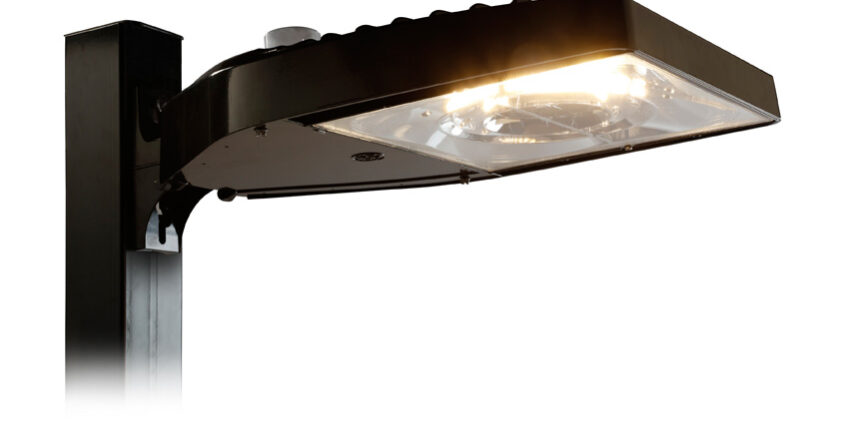

The GE Evolve™ LED Area Light, EALP, is optimized for customers requesting an energy saving LED solution while adding greater flexibility, style and scalability. Designed to replace up to 1000W Metal Halide luminaires, the EALP offers scalable lumen outputs and provides photometric combinations with high efficacy, providing the ability to meet even a wider range of area lighting needs. Additionally, the Universal Mounting Arm allows for streamlined installation of the EALP luminaire. Optional programmable motion sensing for additional energy savings and Title 24 compliance is available.
Applications
- Site, area, and general lighting applications utilizing advanced LED optical system providing high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels
- Ideal for small to large retailers, commercial to medical properties, and big box retailers
Features
- 7,500 – 35,000 lumen output
- Utilizes high brightness LEDs, 70 CRI at 3000K, 4000K and 5000K typical
- L90 @ 50,000 hours
- Type II, III, IV & V distributions
- 120-277 volt and 347-480 volt available
- DALI compatible
- Mounting options: Universal mounting arm, direct/slipfitter, knuckle slipfitter & wall adaptor
- Title 24 compliant
- UL/cUL certified
- DLC Listed (for 120V-480V)
- Compliant with the material restriction requirements of RoHS
Data Sheets-pdf-Data Sheet — EALP Evolve LED Area Lighting | OLP3113
Data Sheets-pdf-Data Sheet — Shielding for EAL Area Light Fixtures | OLP3120
| File | Description | Distribution | Optical Code | CCT |
|---|---|---|---|---|
| EALP Symmetric Medium – 3000K | SM | C5 | 3000K | |
| EALP Symmetric Medium – 3000K | SM | D5 | 3000K | |
| EALP Symmetric Medium – 3000K | SM | F5 | 3000K | |
| EALP Symmetric Medium – 3000K | SM | H5 | 3000K | |
| EALP Symmetric Medium – 3000K | SM | J5 | 3000K | |
| EALP Symmetric Medium – 3000K | SM | K5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | M5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | N5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | Q5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | S5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | T5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | U5 | 3000K | |
| EALP Symmetric Wide – 3000K | SW | V5 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | C4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | D4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | F4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | H4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | J4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | K4 | 3000K | |
| EALP Asymmetric Forward – 3000K | AF | L4 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | C3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | D3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | F3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | H3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | J3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | K3 | 3000K | |
| EALP Asymmetric Wide – 3000K | AW | L3 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | C2 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | D2 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | F2 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | J2 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | K2 | 3000K | |
| EALP Asymmetric Narrow – 3000K | AN | L2 | 3000K | |
| EALP Asymmetric Auto – 3000K | AA | KA | 3000K | |
| EALP Asymmetric Auto – 3000K | AA | LA | 3000K | |
| EALP Symmetric Medium – 4000K | SM | C5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | D5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | F5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | H5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | J5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | K5 | 4000K | |
| EALP Symmetric Medium – 4000K | SM | L5 | 4000K | |
| EALP Symmetric Wide – 4000K | SW | N5 | 4000K | |
| EALP Symmetric Wide – 4000K | SW | Q5 | 4000K | |
| EALP Symmetric Wide – 4000K | SW | S5 | 4000K | |
| EALP Symmetric Wide – 4000K | SW | T5 | 4000K | |
| EALP Symmetric Wide – 4000K | SW | U5 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | C4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | D4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | F4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | H4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | J4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | K4 | 4000K | |
| EALP Asymmetric Forward – 4000K | AF | L4 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | C3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | D3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | F3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | H3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | J3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | K3 | 4000K | |
| EALP Asymmetric Wide – 4000K | AW | L3 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | C2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | D2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | F2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | H2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | J2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | K2 | 4000K | |
| EALP Asymmetric Narrow – 4000K | AN | L2 | 4000K | |
| EALP Asymmetric Auto – 4000K | AA | KA | 4000K | |
| EALP Asymmetric Auto – 4000K | AA | LA | 4000K | |
| EALP Symmetric Medium – 5000K | SM | C5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | D5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | F5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | H5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | J5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | K5 | 5000K | |
| EALP Symmetric Medium – 5000K | SM | L5 | 5000K | |
| EALP Symmetric Wide – 5000K | SW | N5 | 5000K | |
| EALP Symmetric Wide – 5000K | SW | Q5 | 5000K | |
| EALP Symmetric Wide – 5000K | SW | S5 | 5000K | |
| EALP Symmetric Wide – 5000K | SW | T5 | 5000K | |
| EALP Symmetric Wide – 5000K | SW | U5 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | C4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | D4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | F4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | H4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | J4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | K4 | 5000K | |
| EALP Asymmetric Forward – 5000K | AF | L4 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | C3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | D3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | F3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | H3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | J3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | K3 | 5000K | |
| EALP Asymmetric Wide – 5000K | AW | L3 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | C2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | D2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | F2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | H2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | J2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | K2 | 5000K | |
| EALP Asymmetric Narrow – 5000K | AN | L2 | 5000K | |
| EALP Asymmetric Auto – 5000K | AA | KA | 5000K | |
| EALP Asymmetric Auto – 5000K | AA | LA | 5000K | |
| EALP Symmetric Wide – 5000K | SW | V5 | 5000K | |
| EALP Symmetric Medium – 3000K | SM | L5 | 3000K | |
| EALP Symmetric Wide – 4000K | SW | V5 | 4000K |
