Product ID: EALS

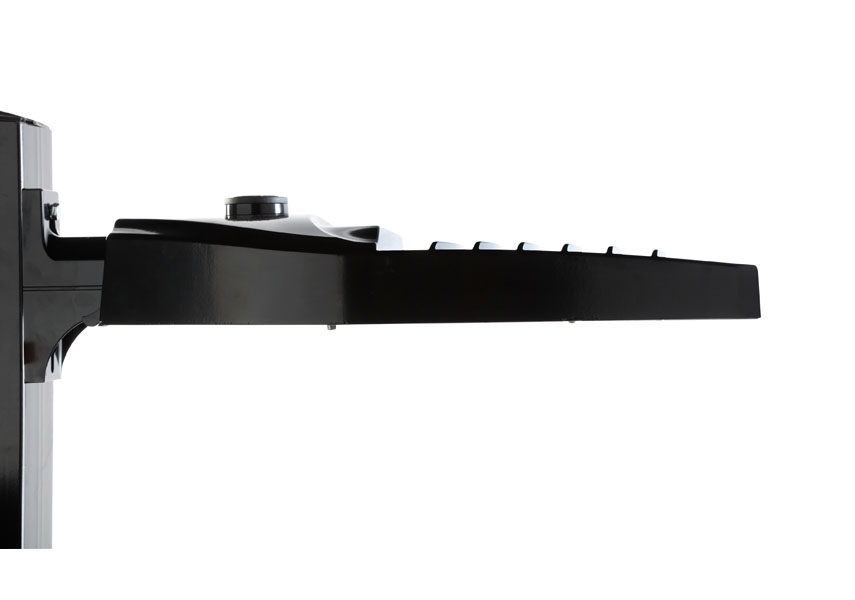

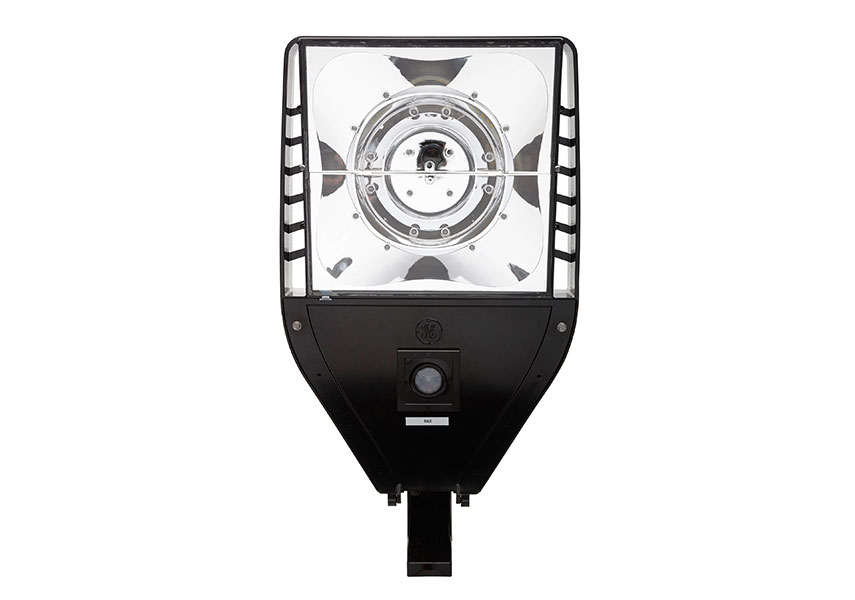

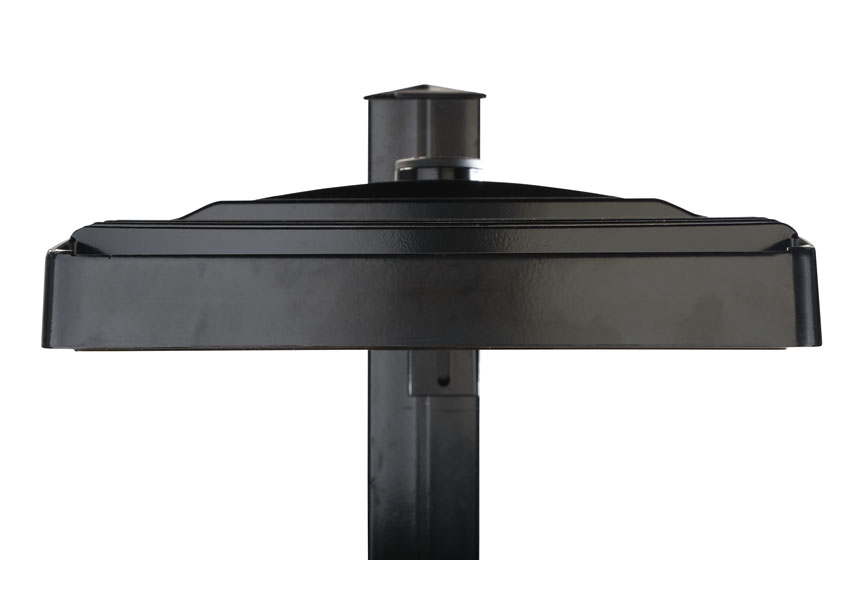

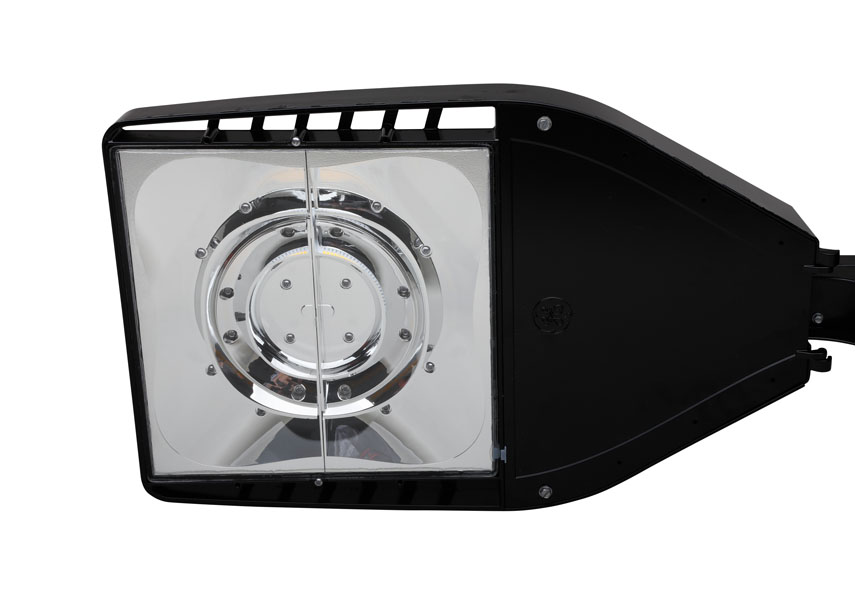

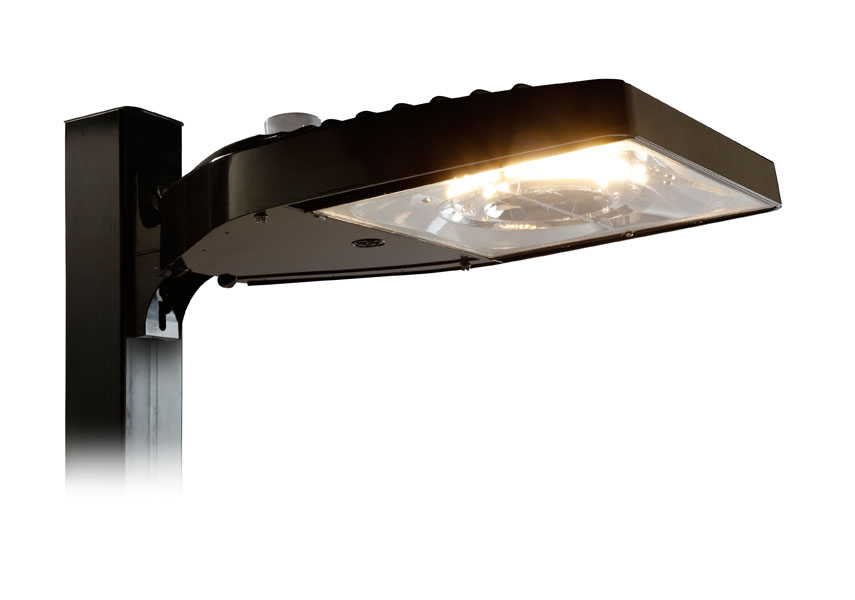

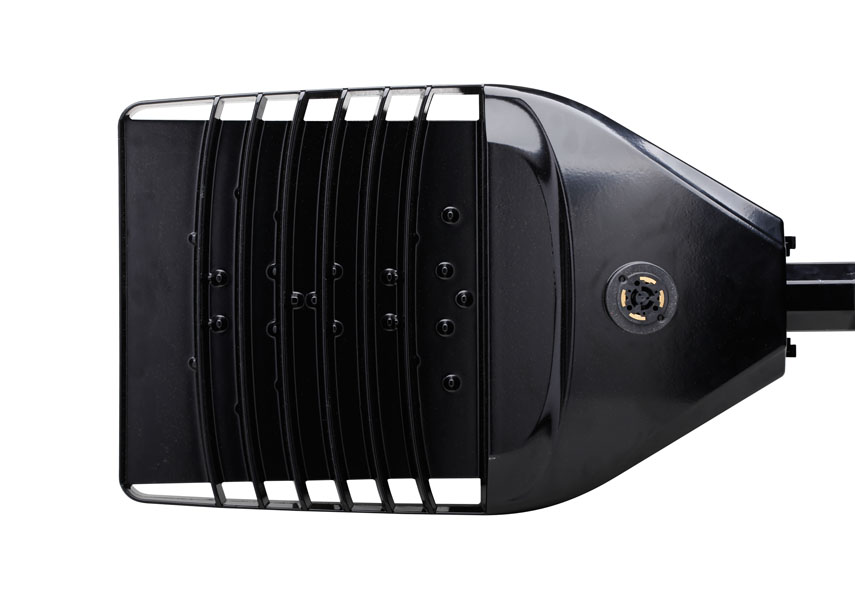

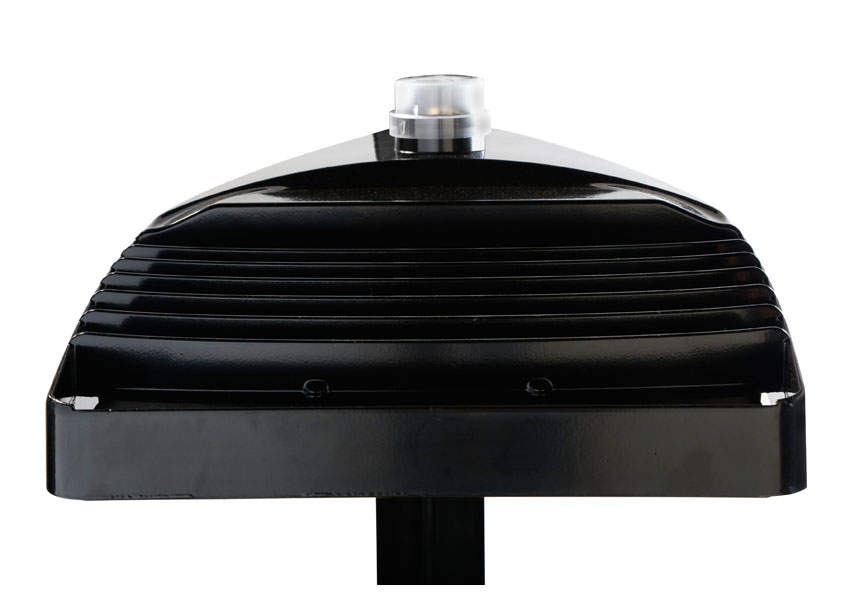

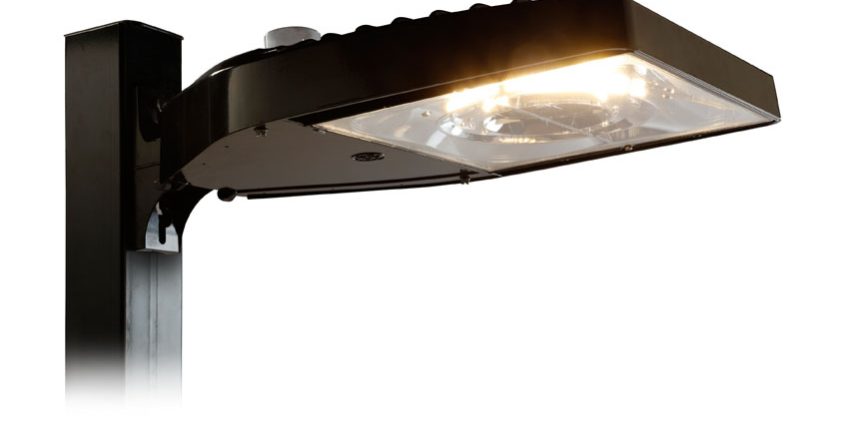

The GE Evolve™ LED Area Light, EALS, is optimized for customers requesting an energy saving LED solution while adding greater flexibility, style and scalability. Designed to replace up to 1000W Metal Halide luminaires, the EALS offers scalable lumen outputs and provides photometric combinations with high efficacy, providing the ability to meet even a wider range of area lighting needs. Additionally, the new Universal Mounting Arm allows for streamlined installation of the EALS luminaire. Optional programmable motion sensing for additional energy savings and Title 24 compliance is available.
Applications
- Site, area, and general lighting applications utilizing advanced LED optical system providing high uniformity, excellent vertical light distribution, reduced offsite visibility, reduced on-site glare and effective security light levels
- Ideal for small to large retailers, commercial to medical properties, and big box retailers
Features
- 9,700 – 34,000 lumen output
- Utilizes high brightness LEDs, 70 CRI at 3000K, 4000K and 5000K typical
- L76 @ 50,000 hours
- Type II, III, IV & V distributions
- 120-277 volt and 347-480 volt available
- DALI compatible
- Mounting options: Universal mounting arm, direct/slipfitter, knuckle slipfitter & wall adaptor
- Title 24 compliant
- UL/cUL certified
- DLC Listed (for 120V-480V)
- Compliant with the material restriction requirements of RoHS
