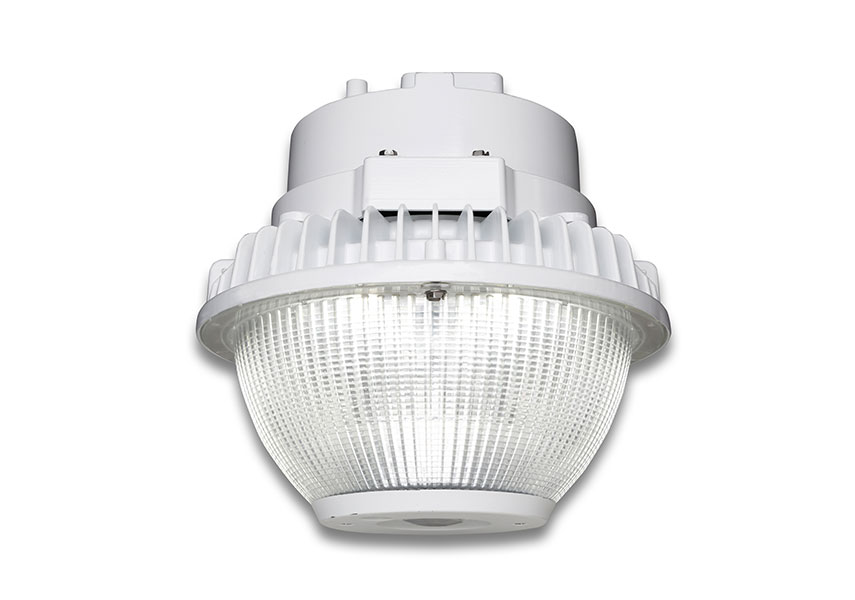

Evolve™ LED Garage Light – EG2R

Product ID: EG2R

High quality lighting meets long life and controllability with the Evolve™ LED Garage Light, EG2R. This fixture features an advanced LED optic specifically designed for applications such as parking decks with low mounting heights to provide high uniformity and excellent vertical light distribution with reduced glare, illuminating your parking area with effective security light levels.

Features include programmable motion sensing, step dimming and daylight harvesting. GE’s optical approach with reflective optics and prismatic lens provides a low-glare solution ideal for low mounting height garage applications. Additionally, up-lighting is a standard photometric feature in the EG2R, providing a driver-friendly appearance, and eliminating the “cave-effect” that often occurs without up-light.

The Evolve LED Garage Light, EG2R, significantly reduces energy and maintenance expenses over the life of the system with a rated life of L70, 100,000hrs and is also RoHS compliant, giving you a lead and mercury free lighting solution.

Applications

• Garage, warehouse, walkway and stairway lighting

---

Housing

• Die-cast aluminum heat sink to maximize heat transfer for electrical components and provide long LED life

---

LED & Optical Assembly

• Evolve™ light engine consisting of reflective technology designed to optimize application efficiency and produce a low-glare lighting solution
• Utilizes high brightness LEDs, 70CRI typical at 4000K and 5000K

---

Lumen Maintenance

• Projected L70(10K) > 100,000 at Ta 25C per IES TM-21

---

Ratings

• UL/cUL listed per UL 1598
• UL 8750 LED equipment in Lighting Products
• IP65 rated optical enclosure per ANSI C136.25-2009
• Vibration rating at 1G (min) on 2 axis, per ANSI C136.31-2010
• Driver Rated Life >=100,000 hrs for fixture max ambient at or below 40°C
• Temperature rated at -40° to 40°C ambient
• Title 24 compliant with occupancy sensor

---

Mounting

• Available with seven different mounting options providing a versatile product to meet almost any field installation condition
  • Mounting options with wet location rating: 04, 05, 06, 11, 20
  • Mounting options with damp location rating: 01, 02

---

Finish

• Corrosion resistant polyester powder painted, minimum 2.0 mil. thickness
• Standard colors: Gray & White
• RAL and custom colors available

---

Electrical

• 120-277 volt
• System power factor is >90% and THD <20%
• Class “A” Sound rating
• EMI: Title 47 CFR 15 Class A
• Integral surge protection exceeds ANSI C136.2-2014 “Basic” (6kV/3kA – 120 Events)
• Dimming:
  • Wired 0-10V continuous dimming. Order with «D» Option
  • Optional standalone motion sensor dimming
