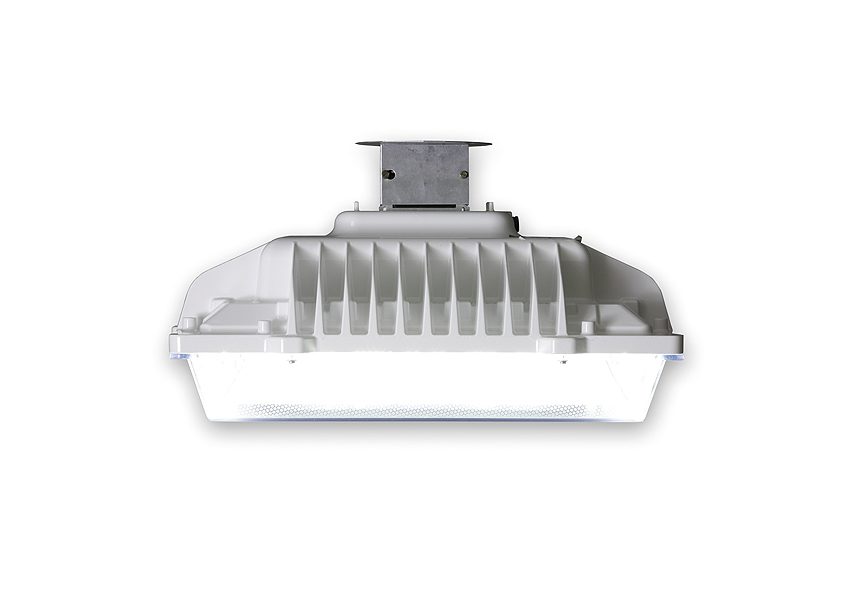

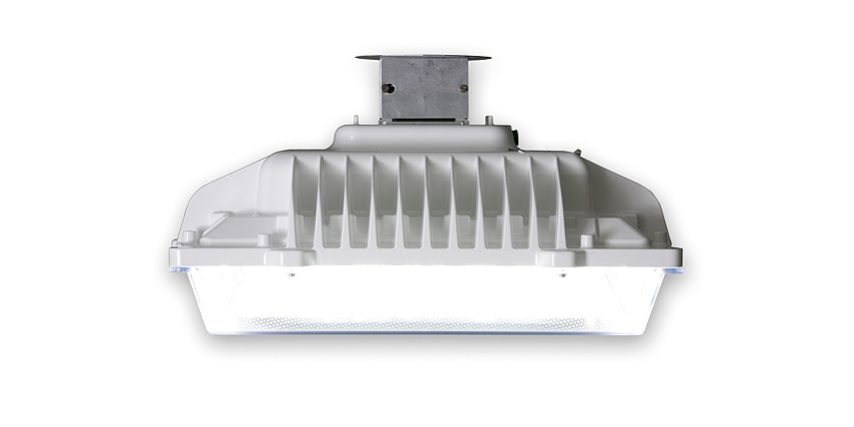

Evolve™ LED Garage Light – Medium Square – EGMS

The Evolve LED Garage Light significantly reduces energy and maintenance expenses over the life of the system and provides a lead- and mercury-free lighting solution.

Applications

• Garage, warehouse, walkway and stairway lighting using a high efficiency LED optical system providing high uniformity and excellent vertical light distribution with reduced glare and effective security light levels

Housing

• Die-cast aluminum housing with integral cast heat sinks to maximize heat transfer for electrical components and provide long LED life

LED and Optical Assembly

• LED optics specifically designed for applications such as parking decks with low mounting heights
• Utilizes high brightness LEDs, 70 CRI at 6000K typical
• LM-79 tests and reports are performed in accordance with IESNA standards

Lumen Maintenance

• System rating is 50,000 hours at L85. Contact factory for L rating (Lumen Depreciation) beyond 50,000 hours

Ratings

• UL/cUL listed, suitable for damp locations
• Wet location listing available with select mounting options
• IP 65 rated optical enclosure per ANSI C136.25-2009
• Temperature rated at -40° to 40°C ambient
• Compliant with the material restriction requirements of RoHS.

Mounting Options

• Available with nine different mounting options providing a versatile product to meet almost any field installation condition

Finish

• Corrosion resistant polyester powder painted, minimum 2.0 mil. thickness
• Applied inside and out of the housing for corrosion protection
• Standard colors: Gray & White
• RAL and custom colors available

Electrical

• 120-277 volt and 347-480 volt available
• System power factor is >90% and THD <20%
• Class “A” sound rating
• Integral surge protection non-dimming:
  • For 120-277VAC per IEEE/ANSI C62.41.-1991, 4kV/2kA Location Category B2 (120 Events)
  • For 347-480VAC per IEEE/ANSI C62.41.-1991, 6kV/3kA Location Category B3 (120 Events)
• Integral surge protection GE dimming:
  • For 120-480VAC per IEEE/ANSI C62.41.2-2002, 6kV/3kA Location Category B (120 Events)
• Optional high capability surge protection per IEEE/ANSI C62.41.2-2002
  • Rating 1 – 10kV/5kA Location Category (120 events)
  • Rating 2 – 6kV/3kA Location Category C-Low (5000 events)
• EMI: Title 47 CFR Part 15 Class A
