Product ID: EWLS

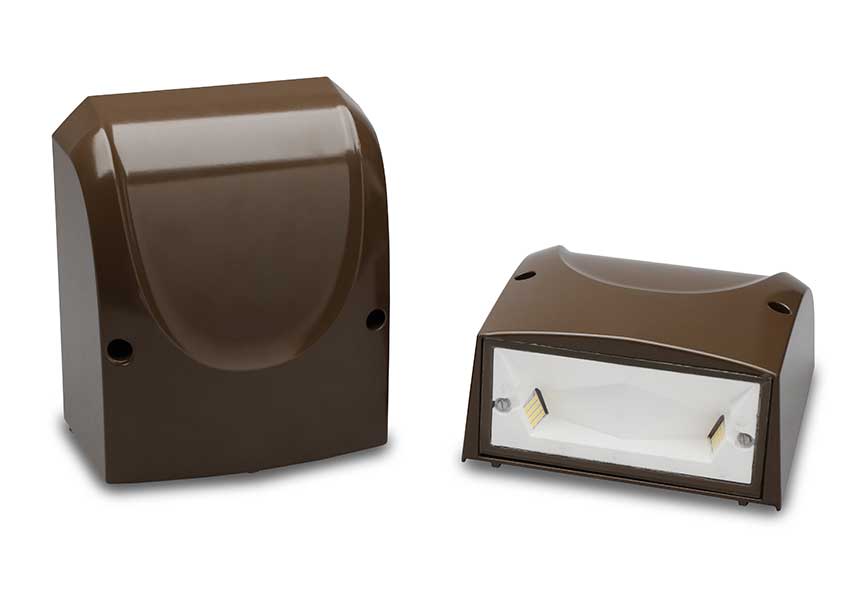

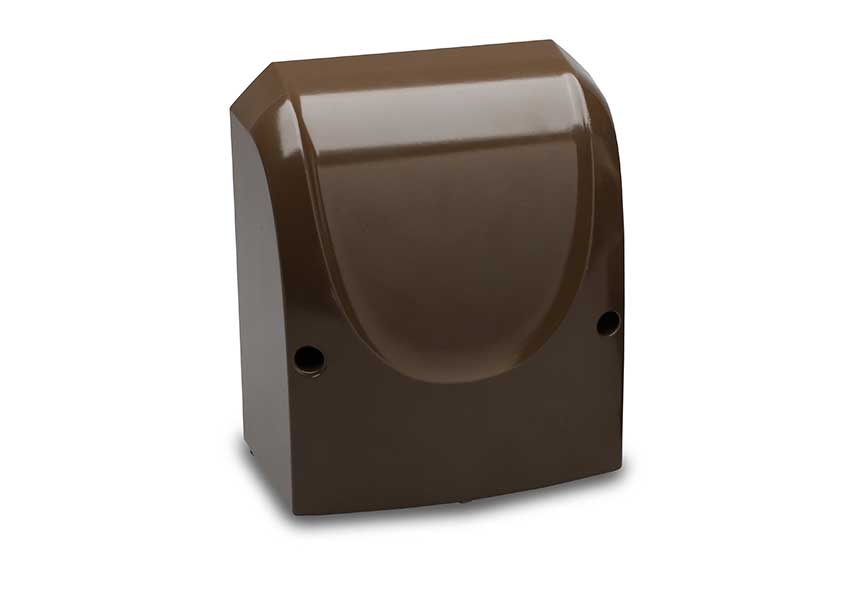

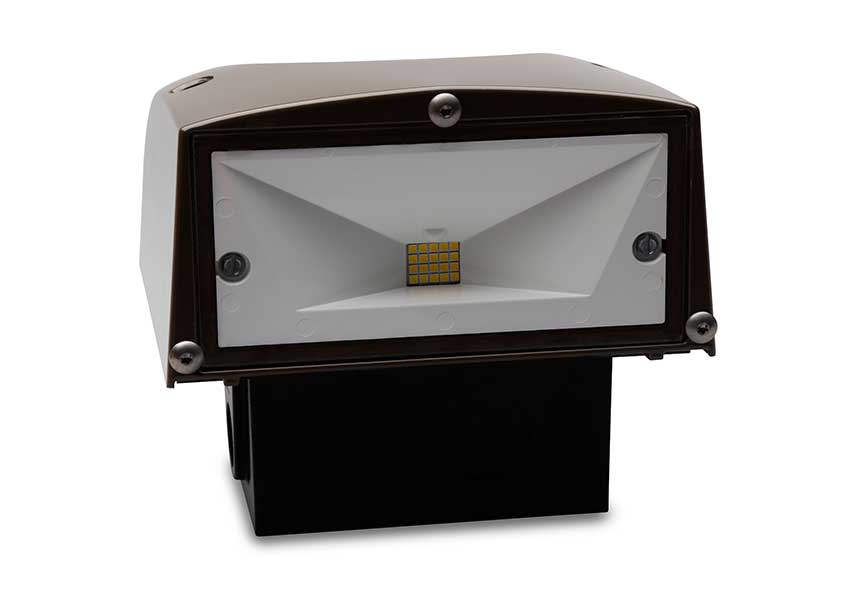

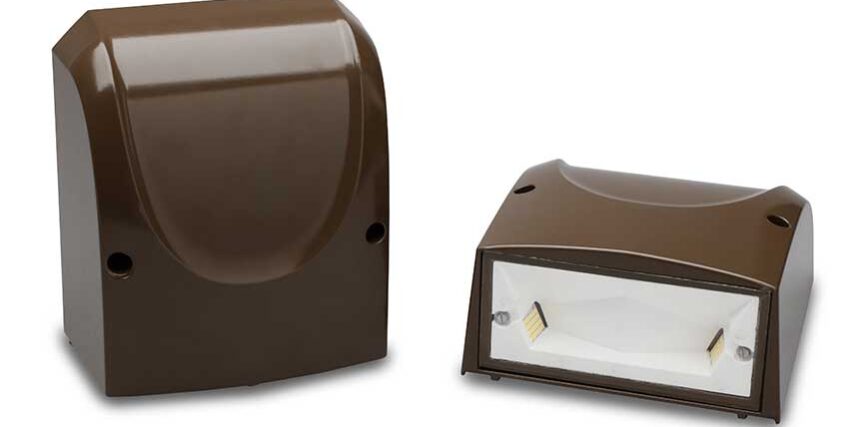

The Evolve LED L-Series Wall Pack, EWLS, is a designed replacement for up to 250W HID, while offering significant energy savings in a long-life LED wall pack. Installers will enjoy the 2-screw installation design, enabling fast and simplified installation. The low-watt Egress package (13W) is designed to meet recommended luminance and illuminance requirements for egress applications such as side and rear exit doors in commercial buildings and can meet NPFA 101 life safety lighting requirements when used with external battery backup. Available in 3000K, 4000K, and 5000K in lumen packages of 1500 & 4000 lm.
Features/Benefits
- 1500 or 4000 lumen output
➥ Increased sense of security - 3000K, 4000K, 5000K CCT
➥ Variety of color temperatures for your application - Up to 125 lpw
➥ Energy savings and rapid payback - L90 > 60,000
➥ Higher lifetime, lower ongoing maintenance costs - Small form-factor, <10lbs

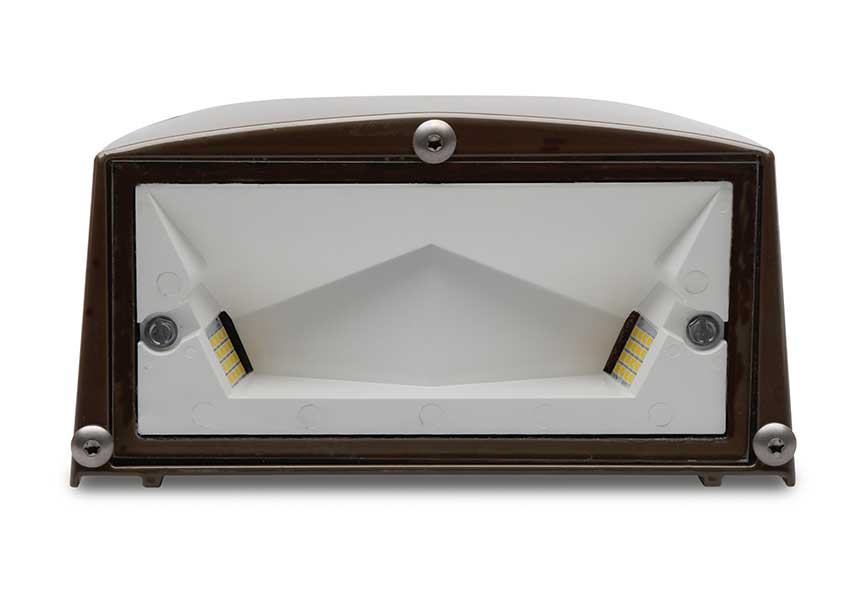

➥ Easy to handle during installation - Custom engineered reflective optics

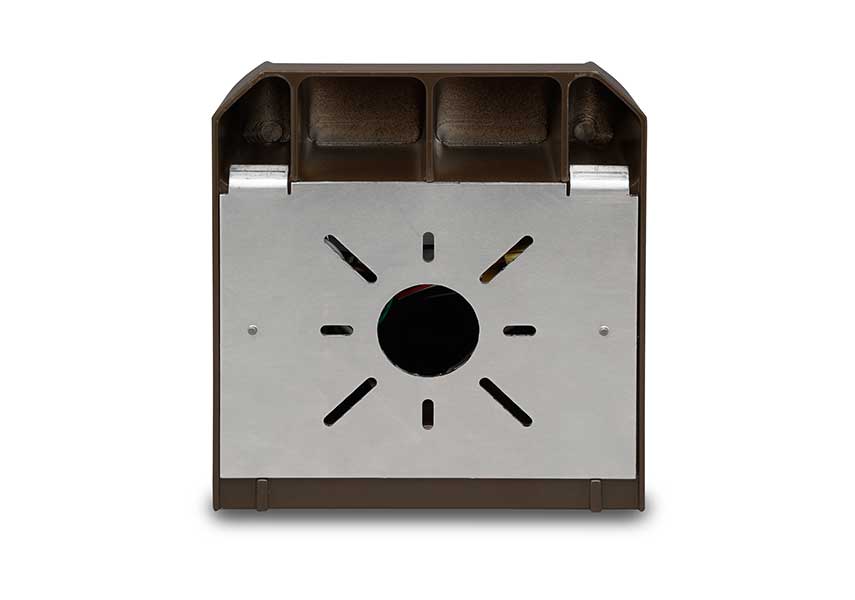

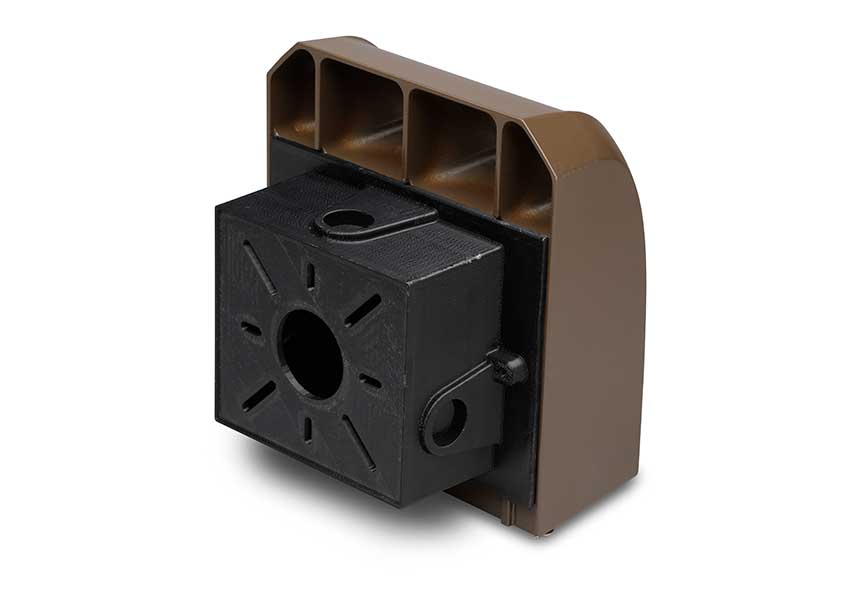

➥ «Shapes» & puts the light where it is needed to go - 2-Screw installation
➥ Faster installation compared to Metal Halide incumbent - Button PE and motion sensor with dimming capability available
- Impact resistant tempered glass lens
➥ Protects the luminaire and your investment - Zero up-light construction, full cut-off
➥ Prevents light trespass/pollution - UL/cUL listed, suitable for wet locations
➥ Suitable for use in dry or wet locations - 120-277 volt and 347 volt
➥ Suitable for most geographic locations - DLC listed
➥ Meets the high-quality, energy-efficient requirements for high-performing commercial lighting
Applications
- Building entrances & perimeter lighting
- Side and rear exit doors
- Stairways and entry path
- Schools, apartment buildings, hospitals
- Retail & commercial buildings
- Loading docks
- Invert for wall washing
