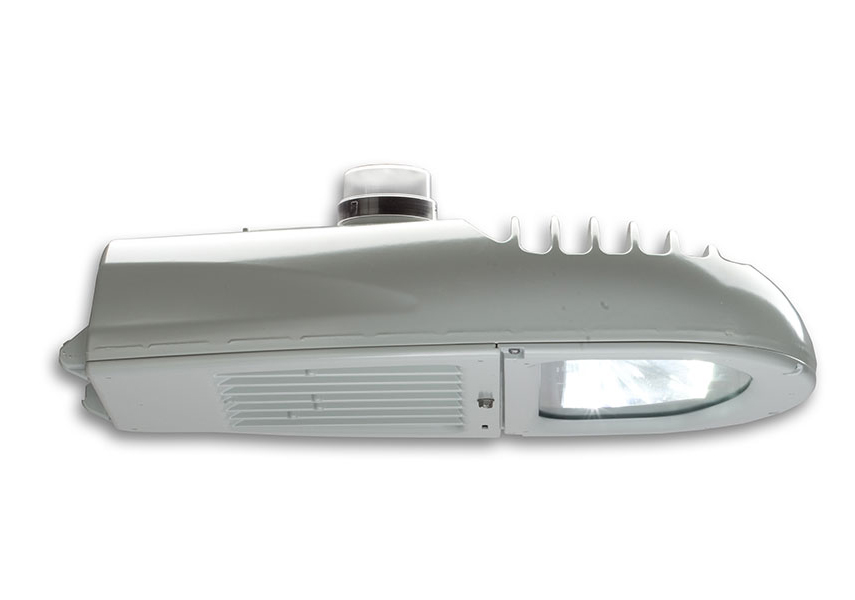

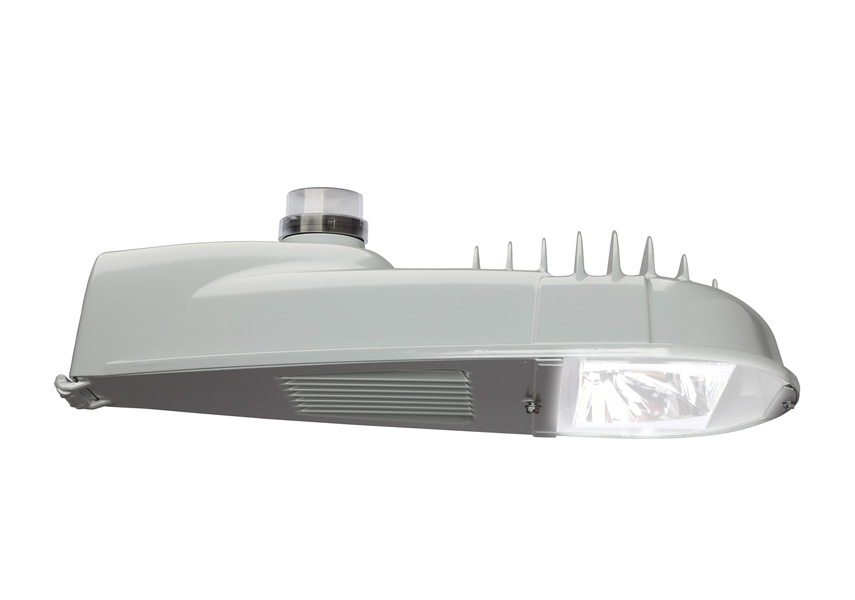

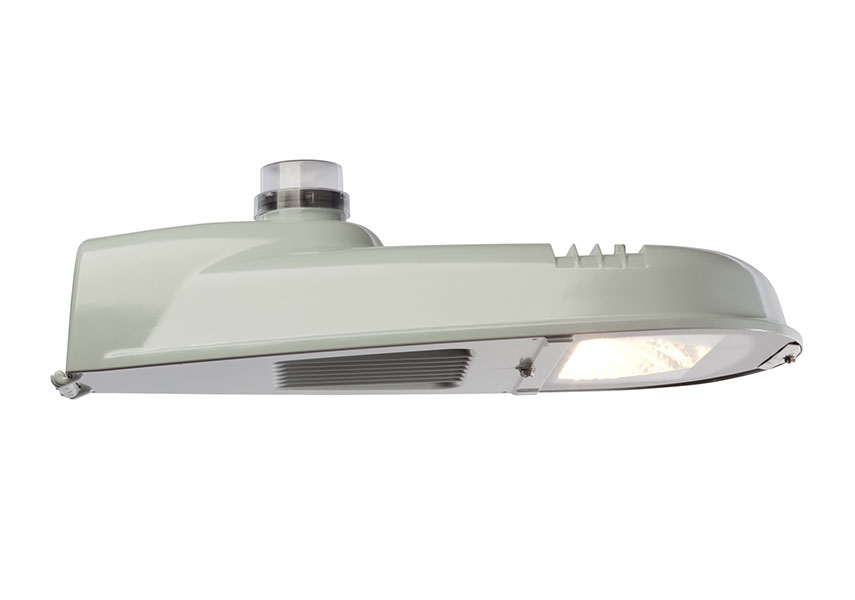

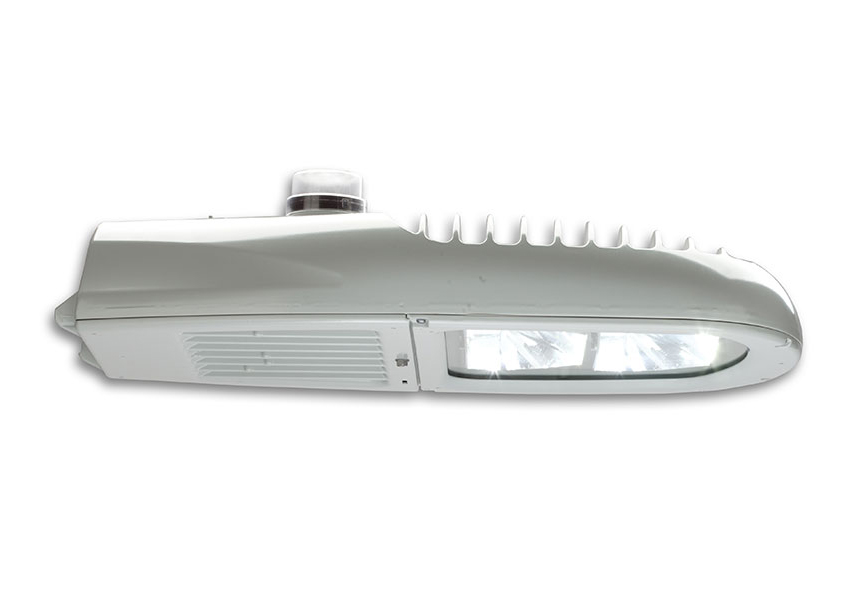

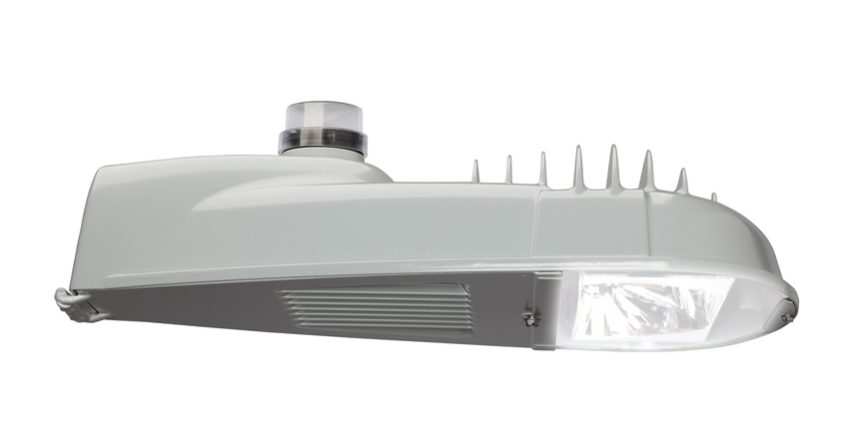

Evolve™ LED Roadway Fixtures

Applications

• Designed to meet recommended luminance and illuminance requirements for local, collector and major roadway/ street classifications.

Housing

• The modern design incorporates Casting-integral heatsink for maximum heat transfer.
• Meets 3G vibration standards per ANSI C136.31-2010.
• Die Cast Enclosure.

LED & Optical Assembly

• Structured LED array for optimized roadway photometric distribution.
• Evolve™ light engine consisting of reflective technology designed to optimize application efficiency and minimize glare.
• Utilizes high brightness LEDs, 70 CRI at 3000K and 4000K typical.
• LM-79 tests and reports are performed in accordance with IESNA standards.

Ratings

• UL/ULC listed, suitable for wet locations per UL 1598.
• Std. Optical enclosure rated per ANSI C136.25-2009:ERL1 = IP65, ERS1-2 = IP66, ERLH = IP65.
• –40° to 50°C UL Ambient Typical.
• Upward Light Output Ratio (ULOR) = 0.
• Compliant with the material restriction requirements of RoHS.

Lumen Maintenance

Delayed start may be experienced at <-35°C.

Mounting

• Slipfitter with +/- 5 degree of adjustment for leveling.
• Integral die cast mounting pipe stop feature.
• Adjustable for 1.25 in. or 2 in. mounting pipe.

Finish

• Corrosion resistant polyester powder painted, minimum 2.0 mil. thickness.
• Standard colors: Black, Gray and Dark Bronze.
• RAL & custom colors available.
• Optional coastal finish available.

Electrical

• 120-277 VAC and 347-480 VAC.
• System power factor is >90% and THD <20%.*
• Class «A» Sound rating.
• 0-10V dimming standard or DALI dimming available upon request for 120V-277V.
• Surge Protection per ANSI C136.2-2015:
  • – Standard: 6kV/3kA “Basic: (120 Strikes)”
  • – Optional Secondary: 10kV/5kA “Enhanced: (40 Strikes)”
• EMI: Title 47 CFR Part 15 Class A
• Photo electric sensors (PE) available.

* System power factor and THD is tested and specified at 120V input and maximum load conditions. THD<26% for 347/480V supply with 03 power level.

Suggested HID Replacement Lumen Levels

• ~4,000–5,000 lumens to replace 100W HPS Cobra-head
• ~8,500–8,800 lumens to replace 150W HPS Cobra-head
• ~8,500–11,500 lumens to replace 200W HPS Cobra-head
• ~11,500–14,000 lumens to replace 250W HPS Cobra-head
• ~21,000–28,000 lumens to replace 400W HPS Cobra-head

Note: Actual replacement lumens may vary based upon mounting height, pole spacing, design criteria, etc.
