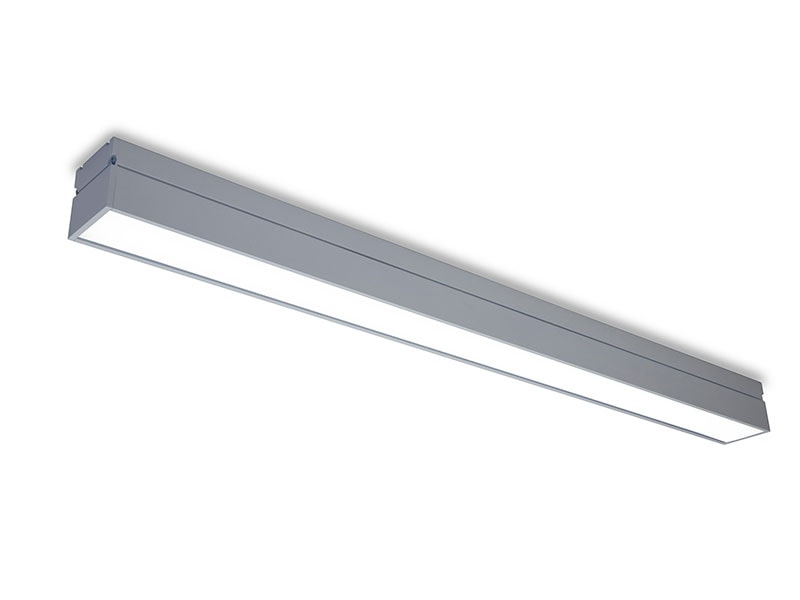

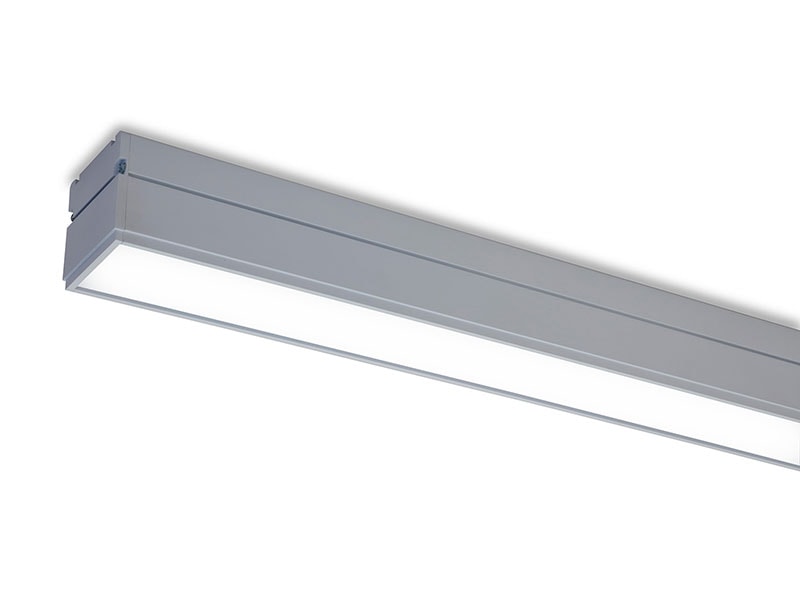

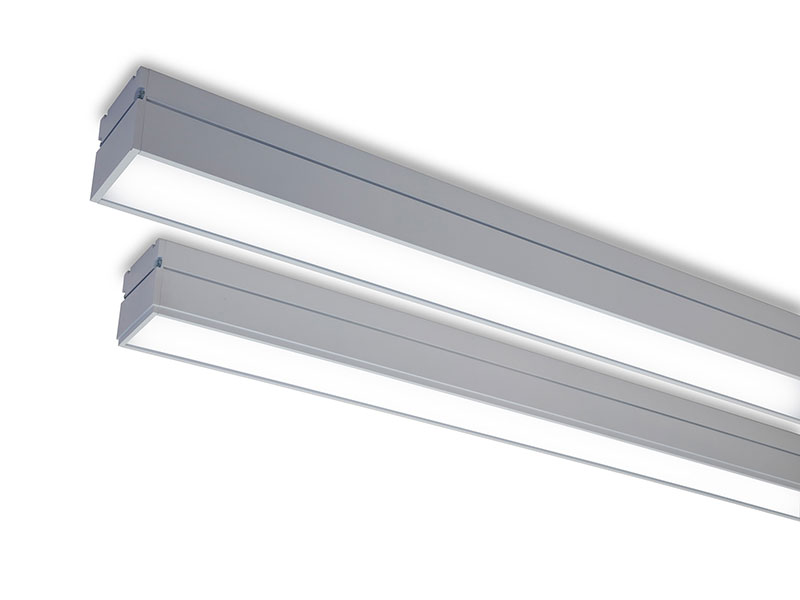

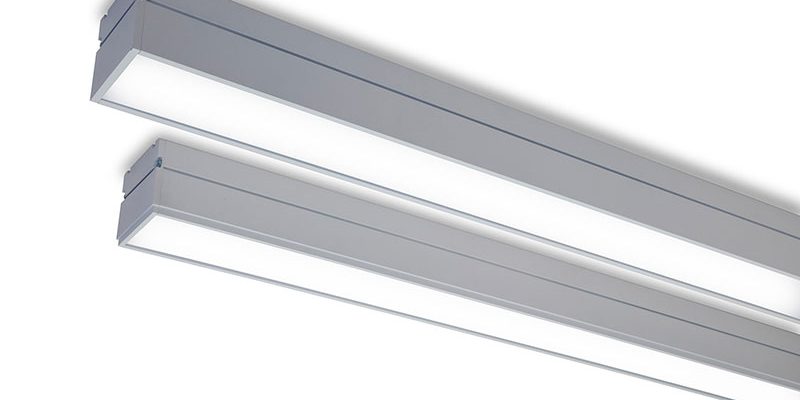

The LAL Series is designed to flawlessly integrate into ceiling systems or drywall ceilings to deliver beautiful lighting for commercial applications by forming uniform lines of light. The series can be recessed individually or in continuous rows. The architectural linear platform offers long life and high efficiency to minimize operating and maintenance costs along with delivering enhanced CRI and R9 without sacrificing efficiency.
Features
- Available with reveal® TriGain™ technology
- Luminaires can connect together for long continuous runs of uniform light
- Flexible installation with option to mount in t-grid or drywall
Additional Efficiency: Achieve up to a 70% reduction in lighting costs by adding Daintree Wireless Lighting Controls. In addition to greater control over illumination levels, you’ll also benefit from improved occupant comfort and productivity.
Specifications
- Color Temperature: 3000K, 3500K, 4000K
- Lumen Output: 400, 700 or 1000 Lumens/ft packages available
- Widths available: 3.5”
- Lengths available: 2, 4, 5, 6 or 8 ft.
- Efficacy: 100+ LPW
- Rated Life: L75-L90 @ 50,000 hours
- Typical CRI: 83, TriGain 90
- Standard Dimming Control: 0-10V & DALI
Applications
- Office
- Retail
- Hospitality
- Healthcare
Product Downloads
- Spec Sheets
- IES Files
- Installation Guides
- Design Files
- Warranties
- Accessories
- Brochures
